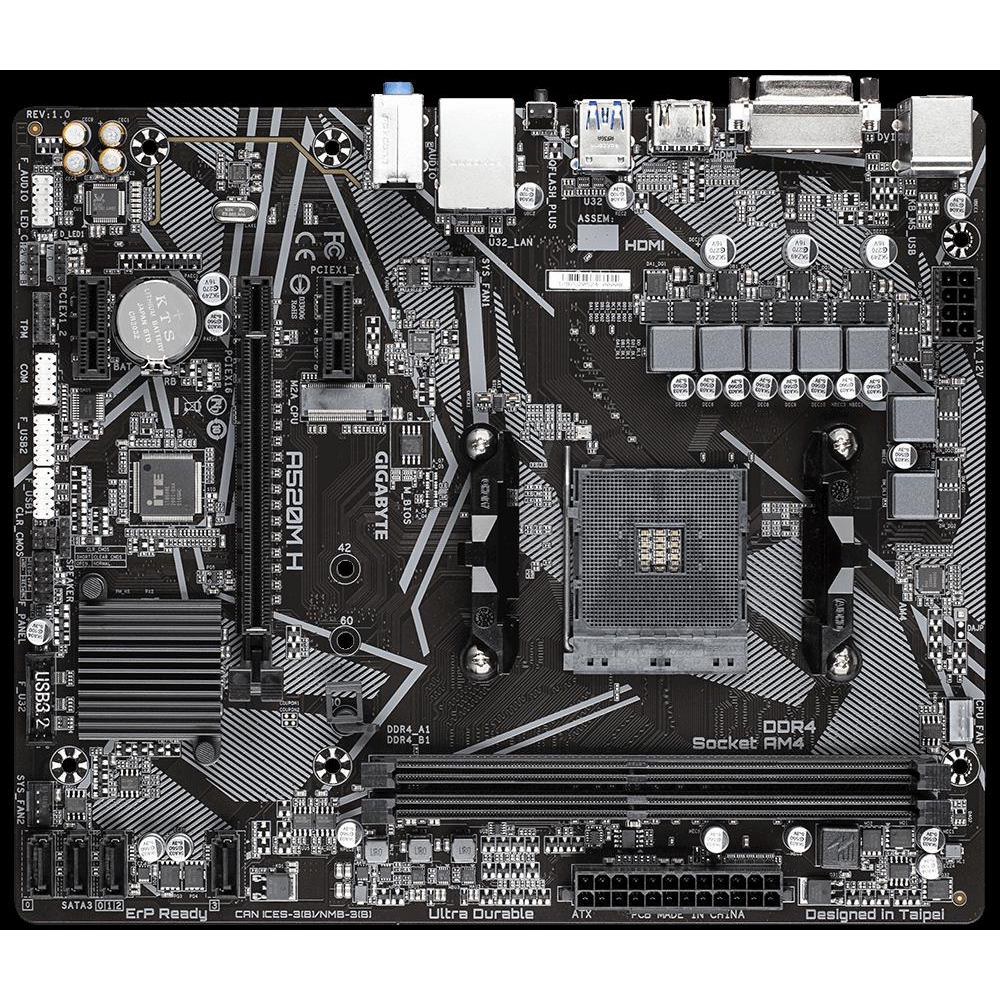

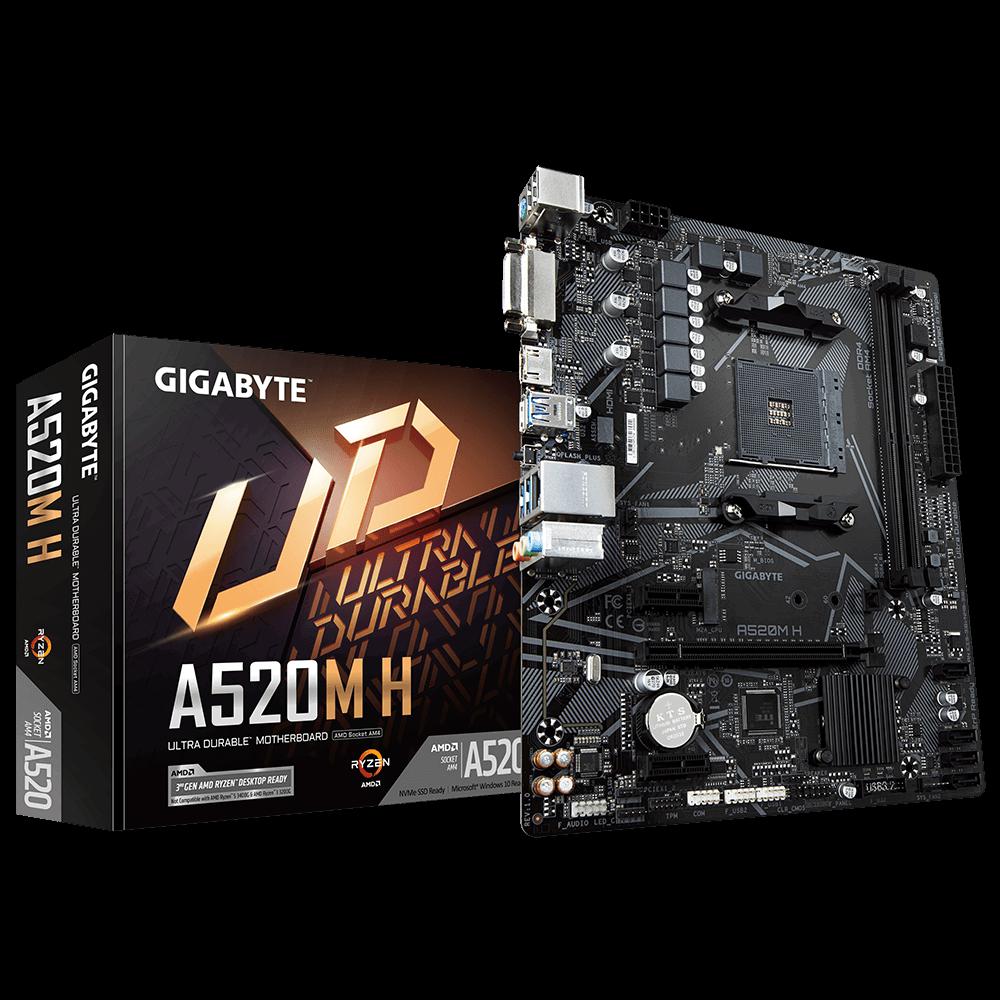

Placa de baza Gigabyte Socket AM4 A520M H DDR4

Placa de baza Gigabyte Socket AM4 A520M H DDR4

A520M H

Placa de baza Gigabyte A520M H AM4 CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer "CPU Support List" for more information.) Chipset AMD A520 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit).

Form factor: ATX
PCI: 0
Slot PCI-Ex16: 1
Serial-or-Paralel: No/No
Conectori SATA: 6GB/s
CPU încorporat: No
RAM type: DDR4
Socket CPU: AM4
Slot PCI-Ex1: 2
Slot RAM: 2
USB: 4-8
Chipset: AMD
Slot M.2: 1
Video output: DVI/HDMI

Condensatoare audio high-end
Placile de baza GIGABYTE folosesc condensatoare audio de inalta calitate. Aceste condensatoare de inalta calitate ajuta la furnizarea audio de inalta rezolutie si fidelitate inalta pentru a oferi cele mai realiste efecte sonore pentru gameri.
Audio noise guard
Placile de baza GIGABYTE dispun de un dispozitiv de protectie a zgomotului audio care separa in mod esential componentele audio analogice sensibile ale placii de potentialele poluari sonore la nivelul PCB.
Alte caracteristici:
Ultra durabila;
GIGABYTE Bracket dublu de blocare brevetat;
Conectori de alimentare cu pin solid;
RGB Fusion 2.0.
